2- flute ball nose end mills with straight shank PM-2B-R1.0~R10.0
High-performance general milling PM series
| Type | Basic dimension(mm) | Number of teeth Z | Geometry |
| | D | R | d | H | L | | |
| PM-2BL-R1.0 | 2.0 | 1.0 | 6 | 4 | 75 | 2 | Picture 1 |
| PM-2BL-R1.25 | 2.5 | 1.25 | 6 | 5 | 75 | 2 | Picture 1 |
| PM-2BL-R1.5 | 3.0 | 1.5 | 6 | 6 | 75 | 2 | Picture 1 |
| PM-2BL-R1.75 | 3.5 | 1.75 | 6 | 8 | 75 | 2 | Picture 1 |
| PM-2BL-R2.0 | 4.0 | 2.0 | 6 | 8 | 75 | 2 | Picture 1 |
| PM-2BL-R2.5 | 5.0 | 2.5 | 6 | 10 | 75 | 2 | Picture 1 |
| PM-2BL-R2.75 | 5.5 | 2.75 | 6 | 12 | 75 | 2 | Picture 1 |
| PM-2BL-R3.0 | 6.0 | 3.0 | 6 | 12 | 75 | 2 | Picture 2 |
| PM-2BL-R3.5 | 7.0 | 3.5 | 8 | 14 | 75 | 2 | Picture 1 |
| PM-2BL-R4.0 | 8.0 | 4.0 | 8 | 16 | 100 | 2 | Picture 2 |
| PM-2BL-R4.5 | 9.0 | 4.5 | 10 | 18 | 100 | 2 | Picture 1 |
| PM-2BL-R5.0 | 10.0 | 5.0 | 10 | 20 | 100 | 2 | Picture 2 |
| PM-2BL-R6.0 | 12.0 | 6.0 | 12 | 24 | 100 | 2 | Picture 2 |
| PM-2BL-R7.0 | 14.0 | 7.0 | 14 | 28 | 100 | 2 | Picture 2 |
| PM-2BL-R8.0 | 16.0 | 8.0 | 16 | 32 | 150 | 2 | Picture 2 |
| PM-2BL-R10.0 | 20.0 | 10.0 | 20 | 40 | 150 | 2 | Picture 2 |
Detailed Product Description:
PM= High performance general machining
2BL= 2 flute ball nose with long shank
R1.0= Radius of ball nose 1.0
Number of teeth: 2 Flute
End tooth type of mills: 2-flute ball nose end mills with long straight shank
Cutting diameter tolerance: D </= 12 (0~-0.020mm)
D<12(0~-0.030mm)
R tolerance: +/-0.01mm
Coated: NaNo AITiN coating
Helical angle: 30 degree
Machining operation:
a. Profile: Ball nose end mills for profile machining
b. Gavity:Ball nose end mills for cavity machining
c. Ball nose slot: Ball nose end mills for slot machining
PM series 2-flute ball nose end mill
PM-2B PM-2BL PM-2BFP
Application of high-performance 2-flute ball nose end mill milling NAK80
Tool type: PM-2B-R3.0
Diameter: Ø6.0mm
Workpiece material: NAK80(40HRC)
Rotating speed: 10600r/min(200m/min)
Feed speed: 2120mm/min(0.2mm/r)
Axial cutting depth: ap=0.2mm
Radial cutting depth: ae=0.3mm
Cutting style: single direction linear milling zig
Cooling system: air blow
Machine tool: MIKRON UCP1000
Tool overhang: 20mm
Roughness measure: TM2000

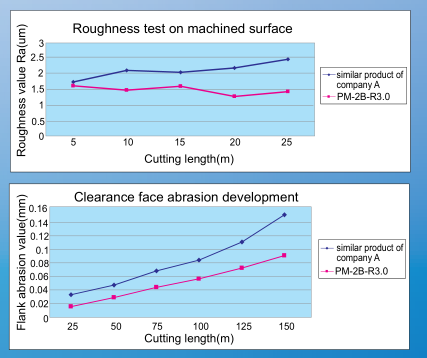

PM ball nose end mills can achieve distinct grooves with low roughness and high surface quality
Advantage of PM series 2-flute ball nose end mill PM-2B PM-2BL PM-2BFP
1) Ultra fine cemented carbide substrate with excellent wear resistance.
2) High-rigidity tool structure reduces virbration.
3) NaNo coating guarantees excellent wear resistance and high temperature stability.
4) Seamless connection of peripheral cutting edge and ball cutting edge is achieved. Optimized center design of ball cutting edge greatly improves surface quality.
.
